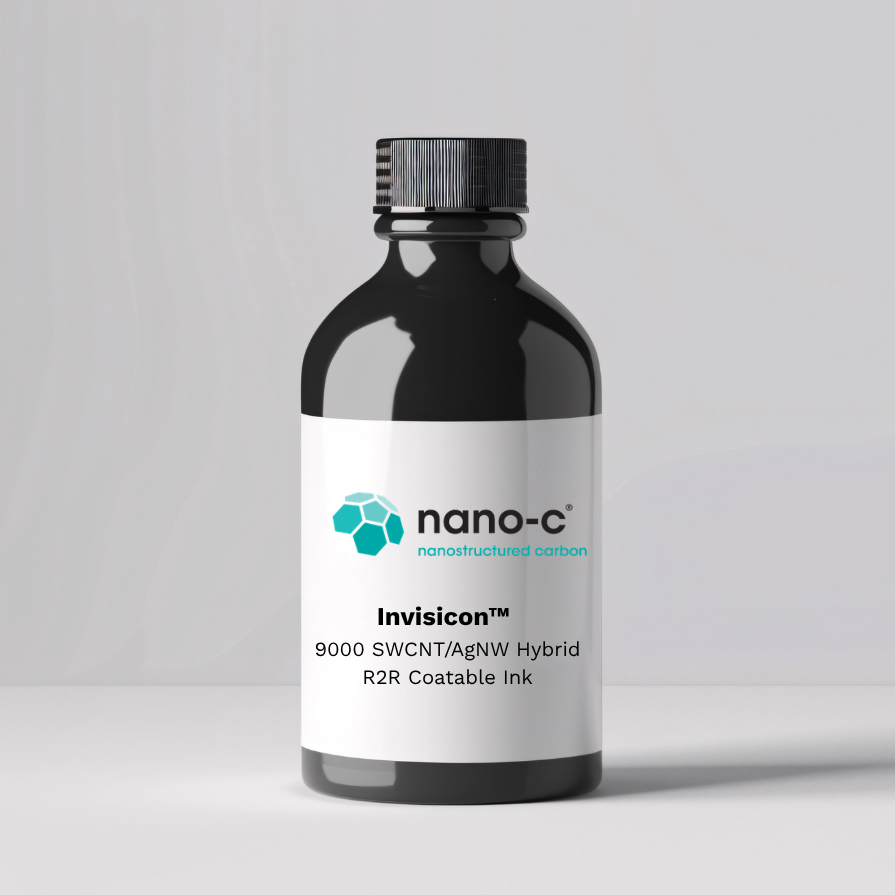

Invisicon™ 9000-8547 SWCNT/Silver Nanowire Hybrid Ink for Slot-die Coating

Description

Invisicon 9000-8547 is a one-pot slot die-coatable SWCNT/AgNW hybrid ink targeting low resistivity and high optical performance.

Description

Invisicon™ 9000-8547 is a of one-pot slot die-coatable AgNW ink targeting low resistivity and high optical performance.

Product Specifications

Deposition Methods

Roll-to-roll (R2R) slot-die coating, sheet slot-die coating

Carrier

Mixed alcohol

Viscosity (@ 25°C and 20 s⁻¹)

140 cp

Silver NW Content

0.4%

Additives/surfactants

Binder, adhesion promoter

Handling & Storage

Diluant

Only use Nano-C 8540 diluent. Please inquire for availability.

Drying Temp (°C)

• R2R: Roll drying in a conveyor oven at 150 °C

• Sheet: Dry wet film at 80 °C or higher on heated stage, as the substrate can tolerate

UV Crosslinking

UV crosslinking of adhesion promoter should be performed at ≤400 nm with the following dosage:

• 10 seconds at a distance of 2 mm @ 10 mW/cm2

• 30 seconds at a distance of 3-5 mm @ 10 mW/cm2

Handling

• Shake vigorously immediately before coating

• Do not probe or bath sonicate the ink at any time

• Any dilution should only be attempted with Nano-C 8540 diluent.

Storage

Store unused ink at room temperature.
