Conductive Inks
Indium tin oxide (ITO) has long been the standard for transparent conductive films, but it's brittle, expensive to process, and incompatible with the flexible, large-area devices that define next-generation electronics.
Nano-C's Invisicon™ SWCNT and hybrid-SWCNT inks are engineered to address these limitations, delivering superior flexibility, conductivity, and optical performance compatible with spray, inkjet, and roll-to-roll coating methods.
Flexibility and conductivity without the constraints of ITO.
Built for Flexible, Large Area Applications
Invisicon™ inks achieve 99% optical transparency while maintaining high conductivity, performing reliably under mechanical stress and repeated flexing. This makes them well-suited for the demanding requirements of foldable displays, wearable devices, and large-area thin-film applications where ITO's brittleness is a fundamental constraint.
Because Invisicon™ inks are solution-processed, they eliminate the need for vacuum deposition equipment and high-temperature processing, reducing both capital investment and production costs. They are compatible with spray, inkjet, and roll-to-roll coating techniques, integrating directly into established manufacturing workflows.
Conductive Inks
Description
Invisicon™ 3000-8950 SWCNT Ink is an additive-free, slot-die coatable SWCNT ink formulation targeting high-quality optical applications
Product Specifications
Deposition Methods
Slot-die coating
Carrier
Mixed alcohol
Viscosity (@ 25°C and 20 s⁻¹)
180 cp
Optical Density (OD)
OD 15 at 555 nm
Additives/surfactants
N/A
Handling & Storage
Diluant
Only use Nano-C 8000 series diluent. Please inquire for availability.
Drying Temp (°C)
Dry wet film at 80 °C or as high as the substrate can tolerate up to 200 °C
Handling
Shake vigorously immediately before coating
Probe sonication recommended immediately before coating for best results. Contact for conditions.
Any dilution should only be attempted with Nano-C 8000 series diluent.
Storage
Store unused ink at room temperature.
Description

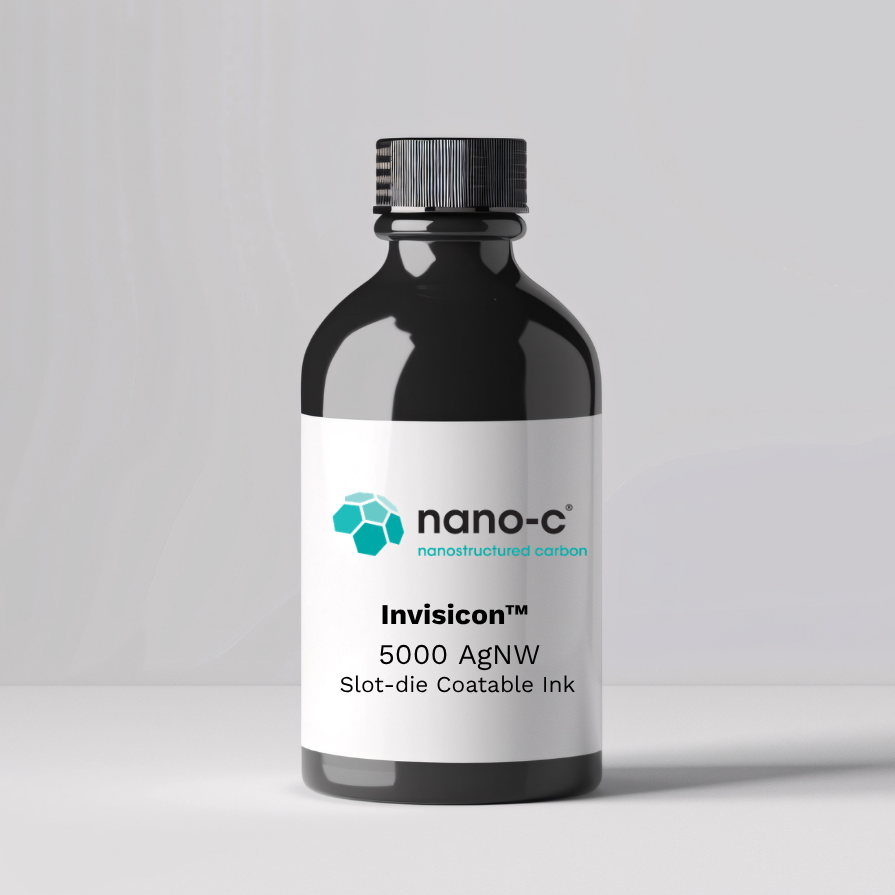

Invisicon™ 5000-8037 is a of one-pot slot die-coatable AgNW ink targeting low resistivity and high optical performance.
Product Specifications
Deposition Methods
Roll-to-roll (R2R) slot-die coating, sheet slot-die coating
Carrier
Mixed alcohol
Viscosity (@ 25°C and 20 s⁻¹)
70 cp
Silver NW Content
0.4%
Additives/surfactants
Binder
Handling & Storage
Diluant
Only use Nano-C 8540 diluent. Please inquire for availability.
Drying Temp (°C)
R2R: Roll drying in a conveyor oven at 150 °C
Sheet: Dry wet film at 80 °C or higher on heated stage, as the substrate can tolerate
Handling
Shake vigorously immediately before coating
Do not probe or bath sonicate the ink at any time
Any dilution should only be attempted with Nano-C 8540 diluent.
Storage
Store unused ink at room temperature.
Description
Invisicon 9000-8547 is a one-pot slot die-coatable SWCNT/AgNW hybrid ink targeting low resistivity and high optical performance.
Description
Invisicon™ 9000-8547 is a of one-pot slot die-coatable AgNW ink targeting low resistivity and high optical performance.
Product Specifications
Deposition Methods
Roll-to-roll (R2R) slot-die coating, sheet slot-die coating
Carrier
Mixed alcohol
Viscosity (@ 25°C and 20 s⁻¹)
140 cp
Silver NW Content
0.4%
Additives/surfactants
Binder, adhesion promoter
Handling & Storage
Diluant
Only use Nano-C 8540 diluent. Please inquire for availability.
Drying Temp (°C)
R2R: Roll drying in a conveyor oven at 150 °C
Sheet: Dry wet film at 80 °C or higher on heated stage, as the substrate can tolerate
UV Crosslinking
UV crosslinking of adhesion promoter should be performed at ≤400 nm with the following dosage:
10 seconds at a distance of 2 mm @ 10 mW/cm2
30 seconds at a distance of 3-5 mm @ 10 mW/cm2
Handling
Shake vigorously immediately before coating
Do not probe or bath sonicate the ink at any time
Any dilution should only be attempted with Nano-C 8540 diluent.
Storage
Store unused ink at room temperature.
Find the right conductive ink formulation for your application
Our team works directly with process and R&D engineers to match the right formulation to your specific conductivity, film thickness, and solvent requirements.
